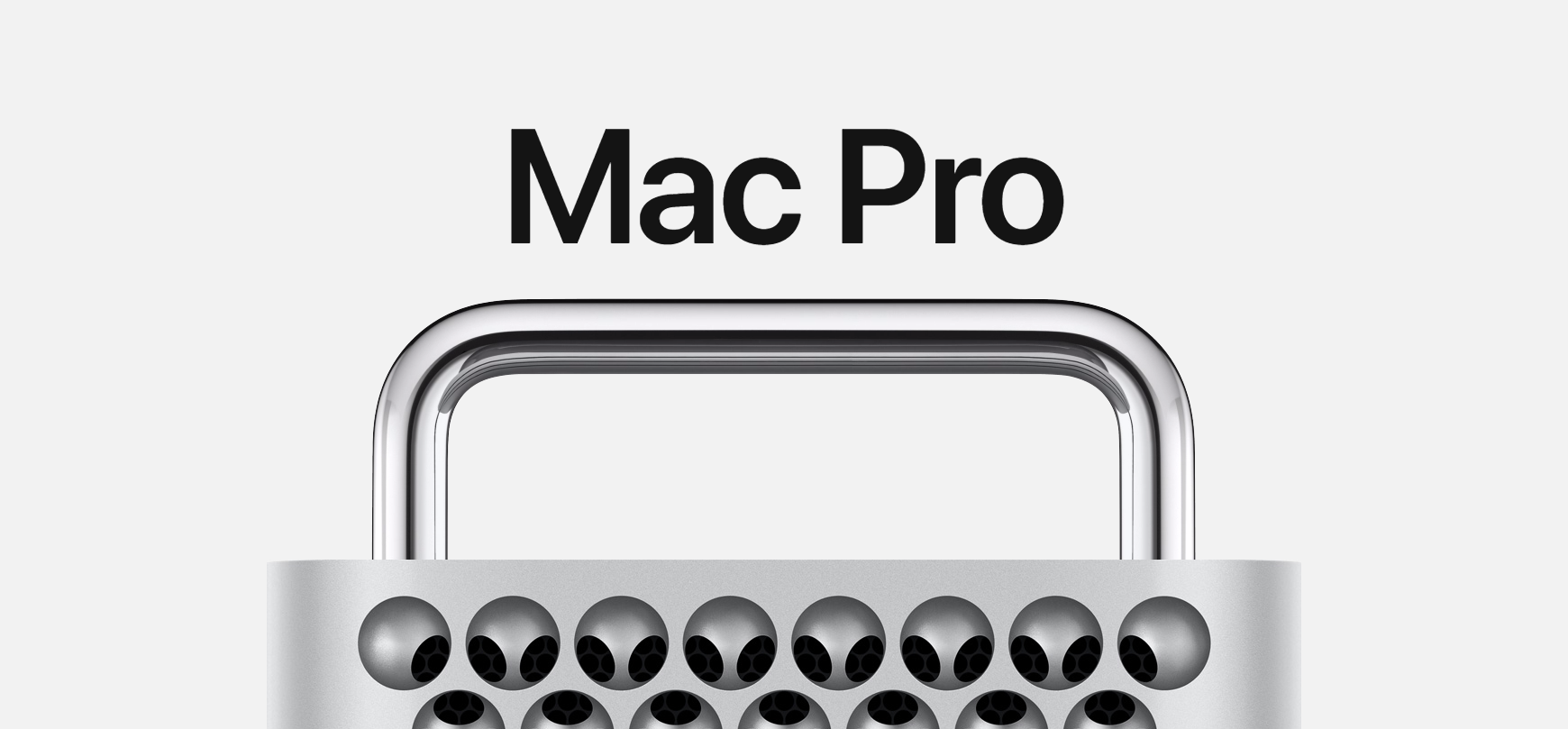

Transformed by Applie silicon
Mind-blowing performance now comes standard.
The new Mac Pro is a game-changing combination of Apple silicon performance and PCIe expansion for specialized workflows. And every configuration comes with the incredible new M2 Ultra — our most powerful and capable chip ever.
Performance

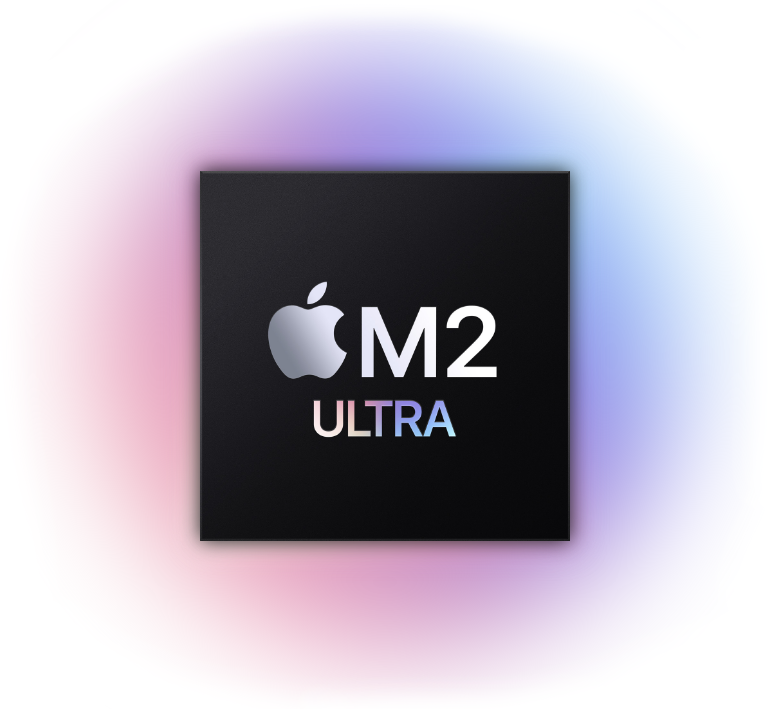

A seismic chip. M2 Ultra puts our most powerful CPU in every Mac Pro. Its GPU with massive unified memory does things other GPUs can’t. And its Media Engine has the performance of seven Afterburner cards built in. Now pros can tackle the most demanding workflows with unprecedented speed and efficiency.
- Up to 1.4x faster than M1 model
- Up to 6x faster than Intel-based model
- Up to 20 hrs battery life1
24-core CPU
up to 1.8x faster than a 28-core Intel-based Mac Pro
Up to
76-core GPU
with up to 3.4x faster graphics performance
Up to
192GB
unified memory
Up to
22 streams
of 8K ProRes video playback
Support for up to
8
displays
Pro Apps
Mind-blowing performance now comes standard. The new Mac Pro is a game-changing combination of Apple silicon performance and PCIe expansion for specialized workflows. And every configuration comes with the incredible new M2 Ultra — our most powerful and capable chip ever.

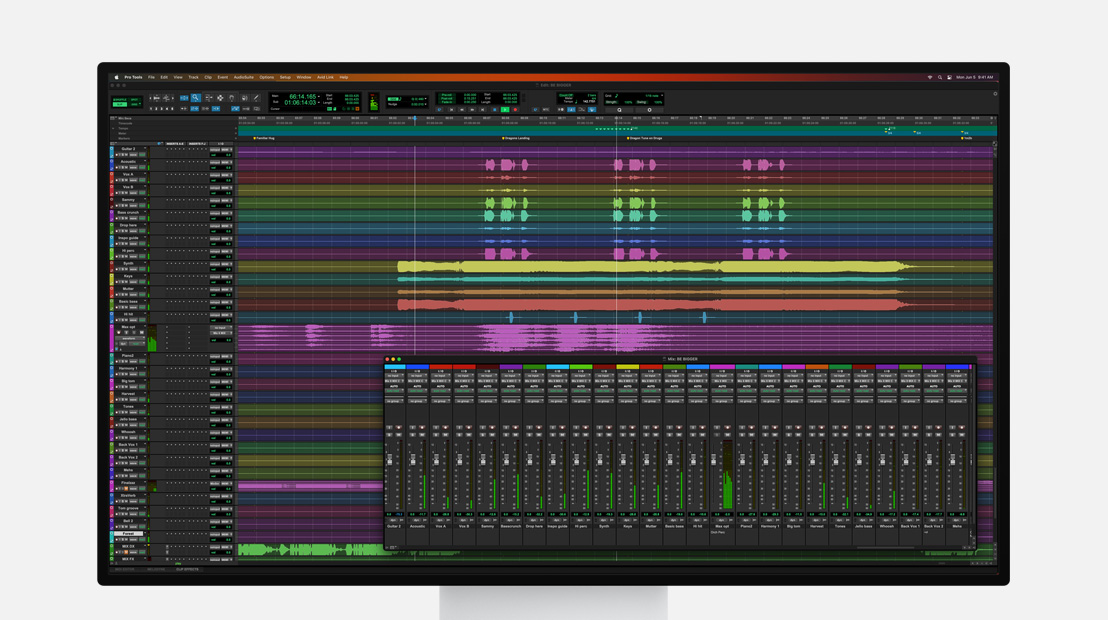

Music production
Apple Logic Pro, Avid Pro Tools, Steinberg Cubase, Ableton Live, and more.

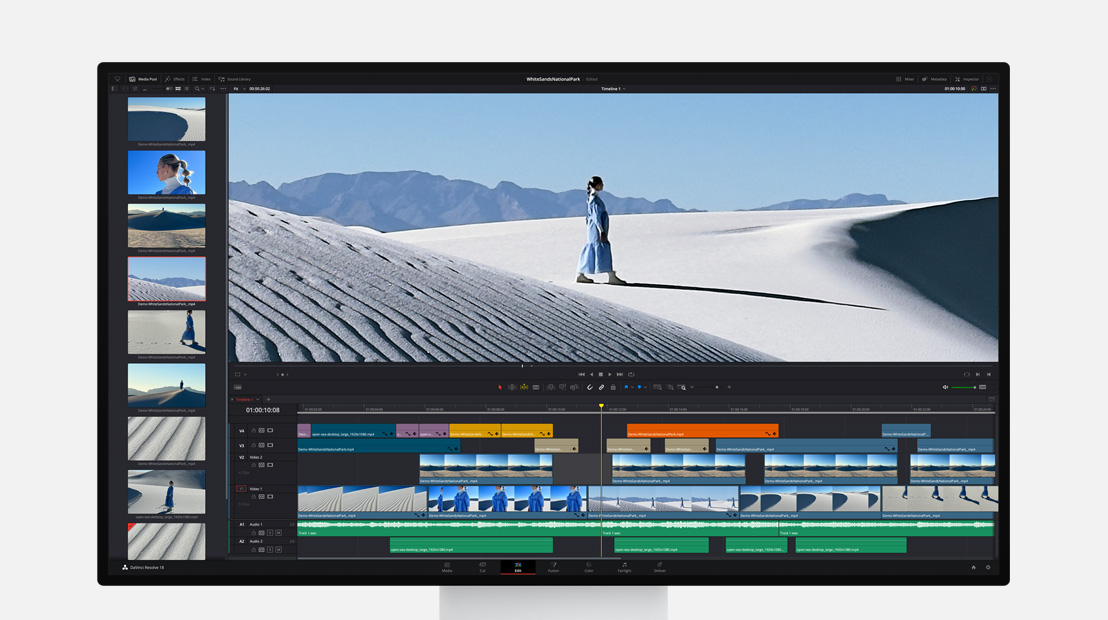

Video transcoding
DaVinci Resolve Studio, Apple Compressor, Adobe Media Encoder, Topaz Video AI, Assimilate Scratch, and more.

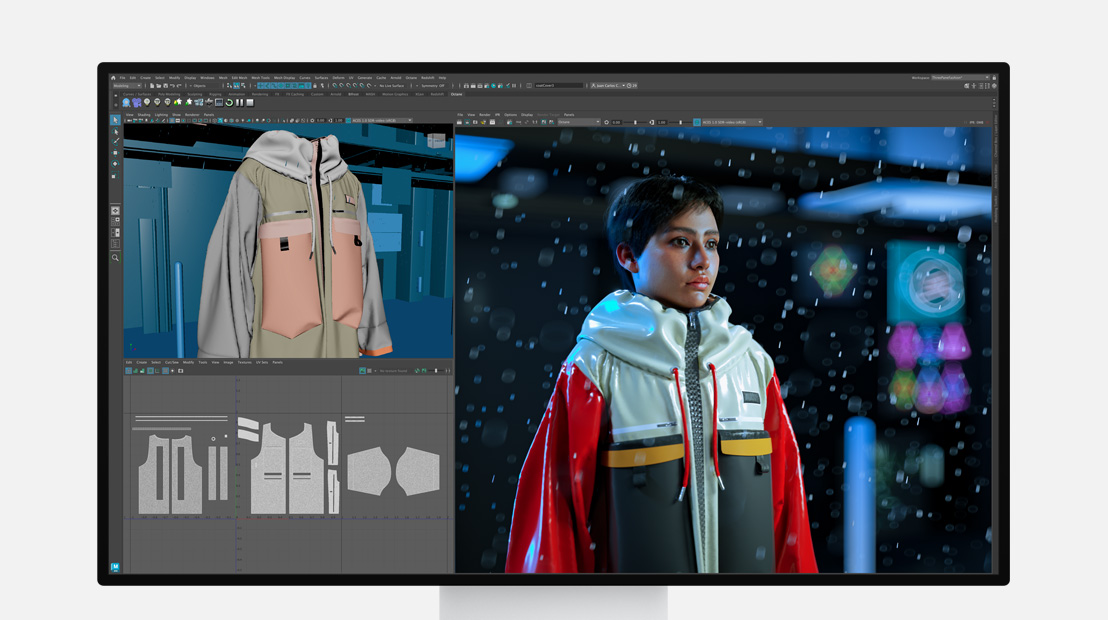

3D rendering
Autodesk Maya, Blender Cycles, Octane X, Maxon Redshift, Chaos V-Ray, Autodesk Arnold, and more.

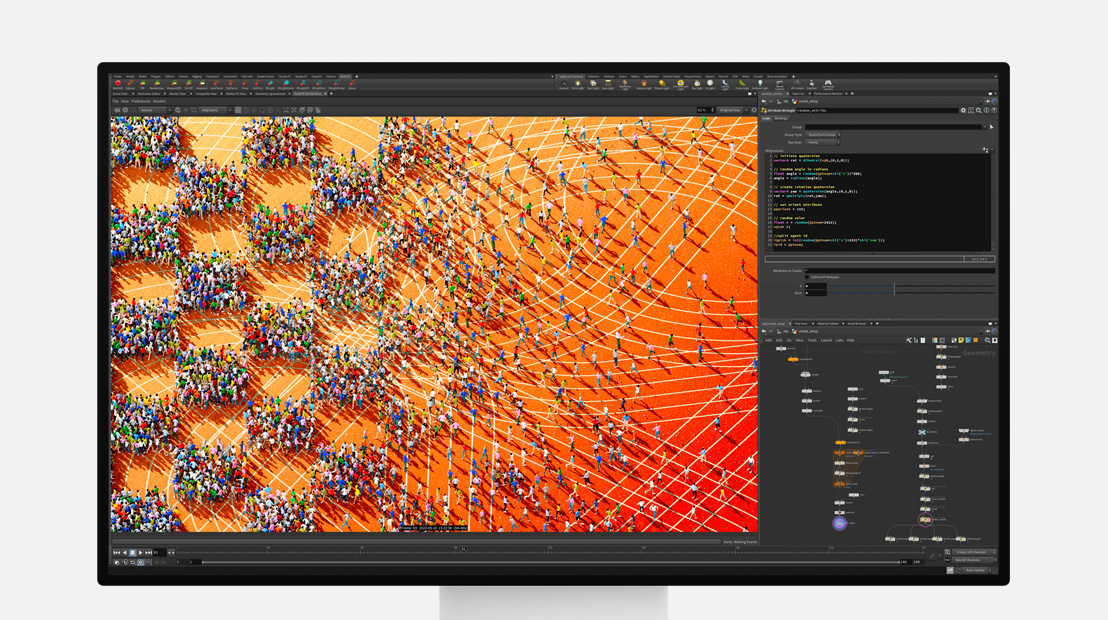

Animation
Blender, Maxon Cinema 4D, SideFX Houdini, Adobe After Effects, and more.
Expansion

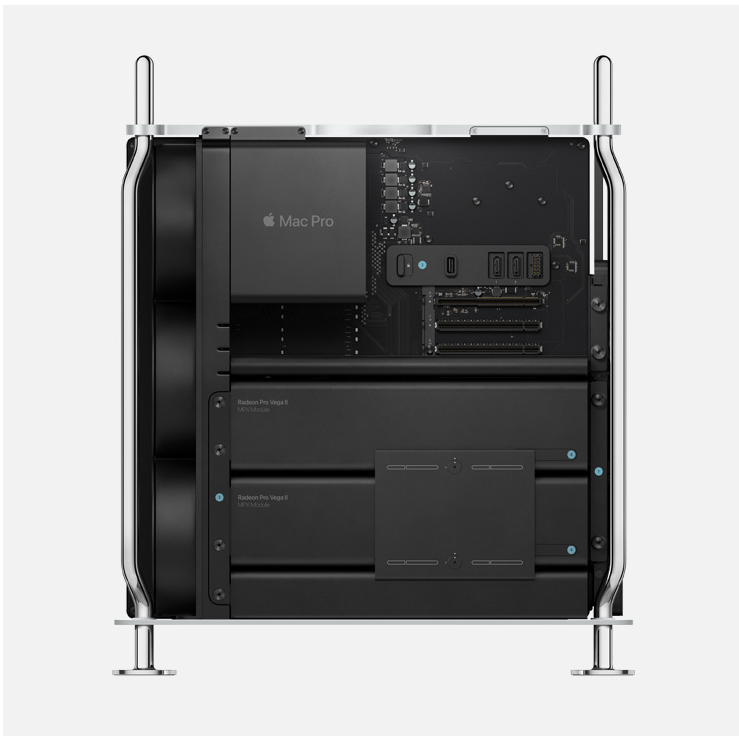

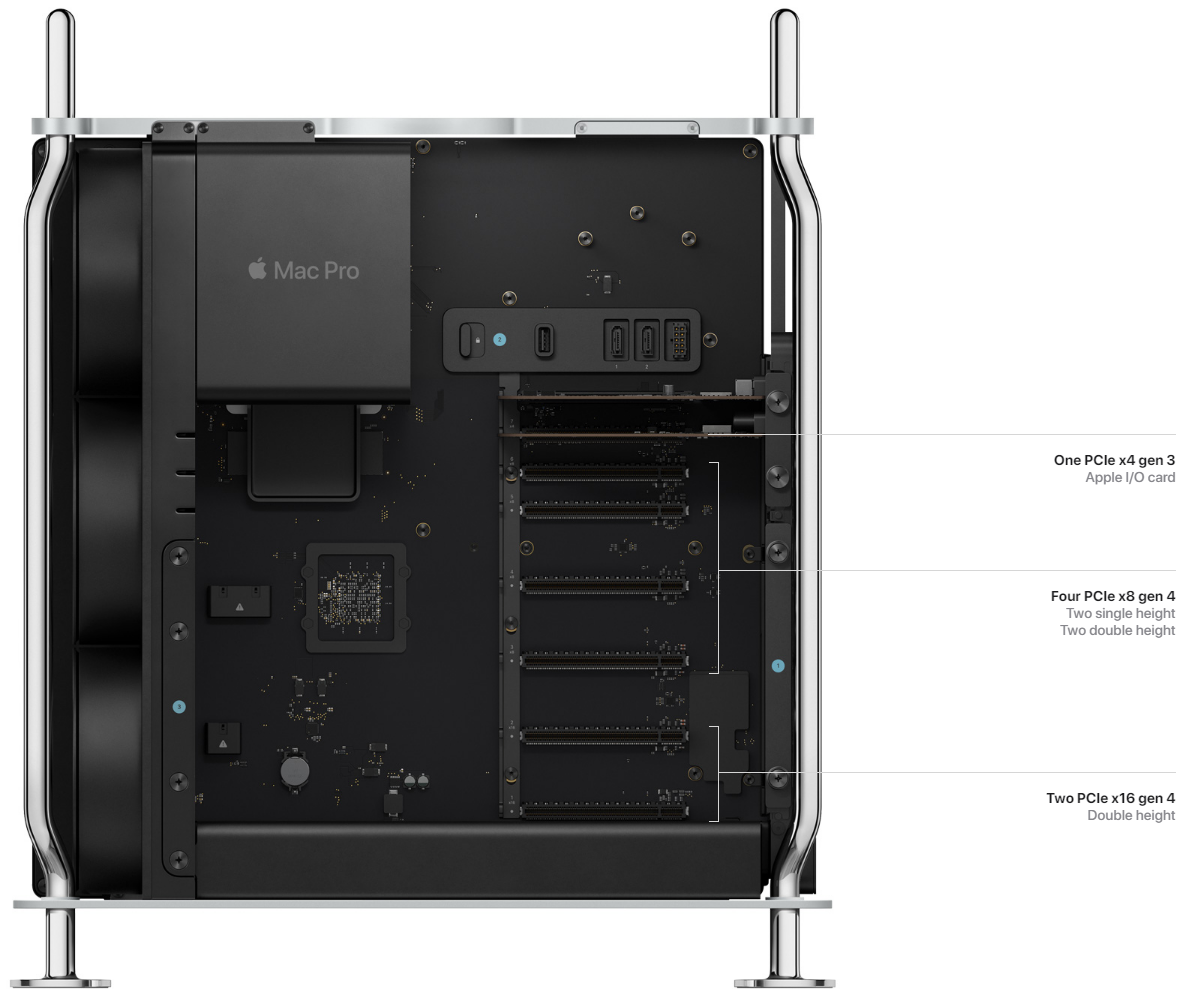

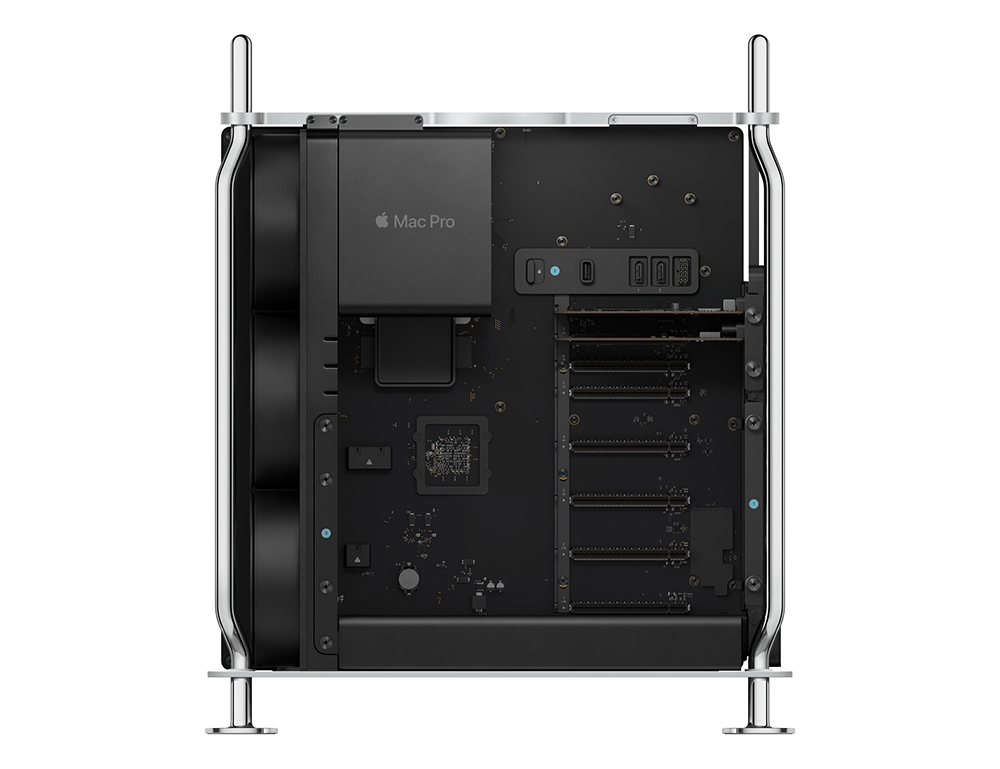

Expand the capabilities. For the first time, breakthrough Apple silicon performance is combined with the versatility of PCI expansion. The new Mac Pro features seven expansion slots, six of which are PCIe gen 4 — providing twice the bandwidth for audio and video I/O, networking, and storage cards. The latest PCIe gen 4 SSD cards, for example, are capable of a colossal 26GB/s.
PCIe
gen 4
with up to 2x bandwidth
Up to
300W
auxiliary power

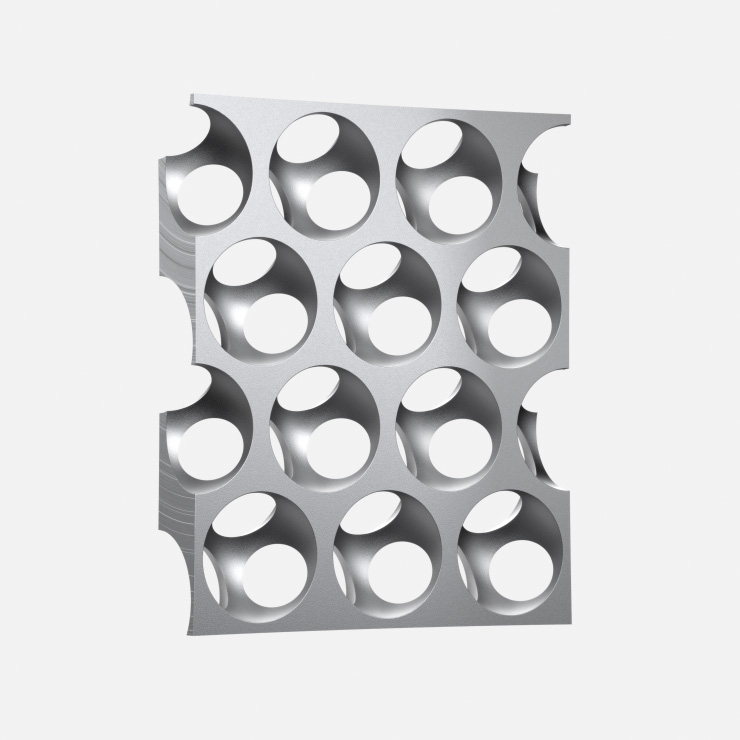

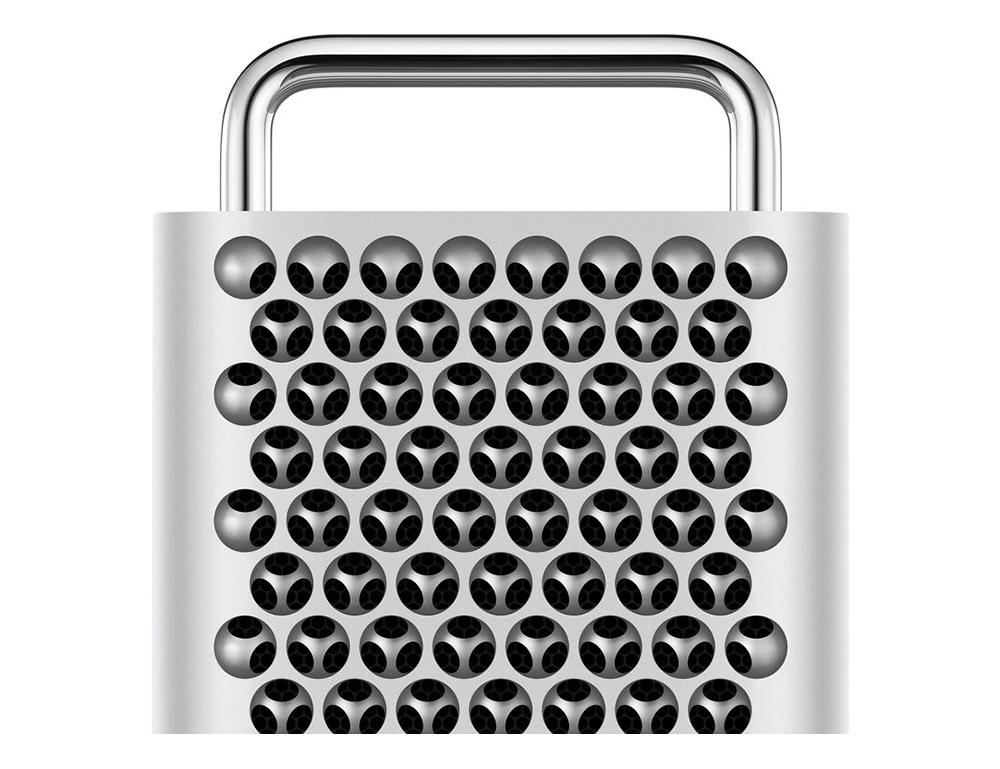

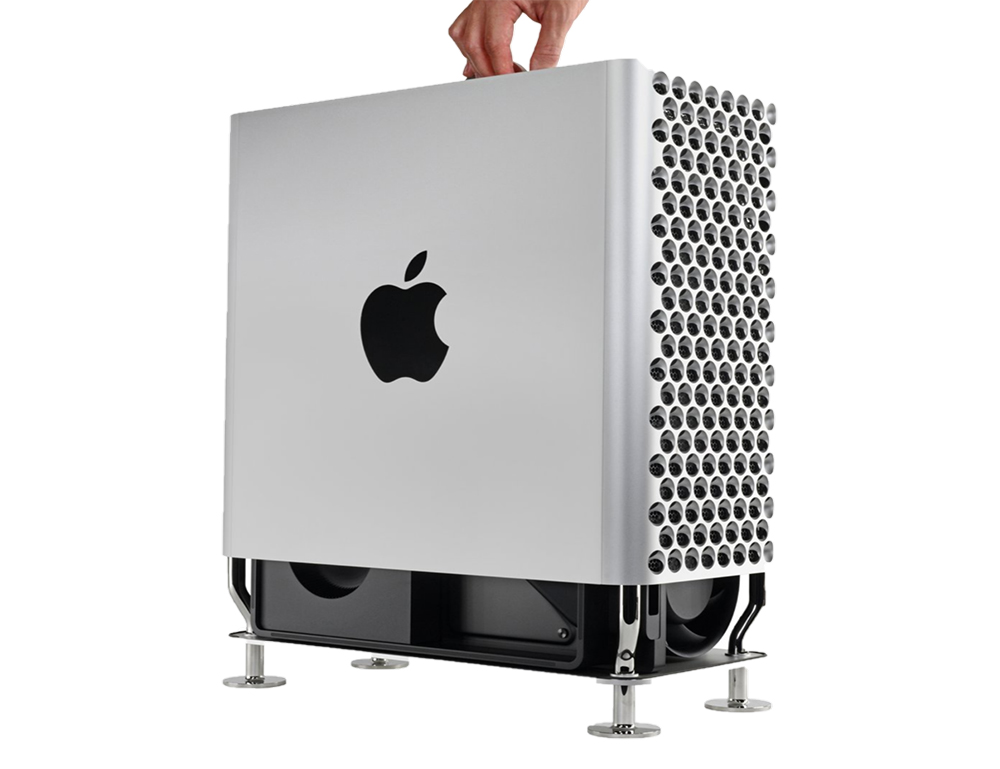

Built to flow. Easy to remove for internal access, the lightweight aluminum housing maximizes airflow while providing an extremely rigid structure.

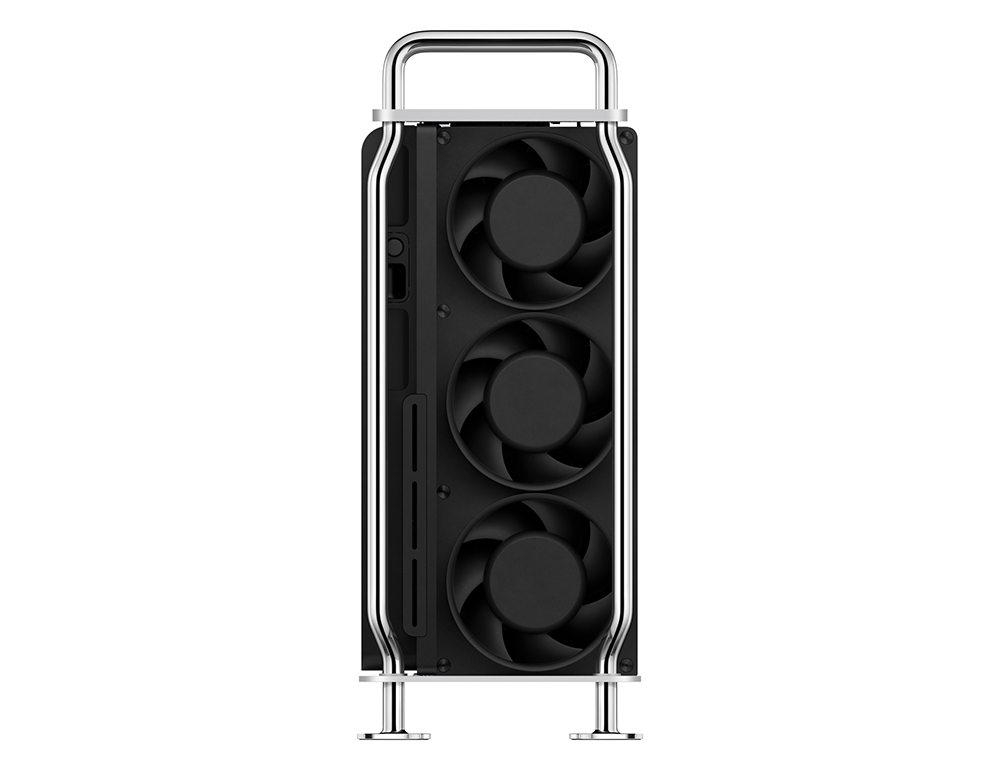

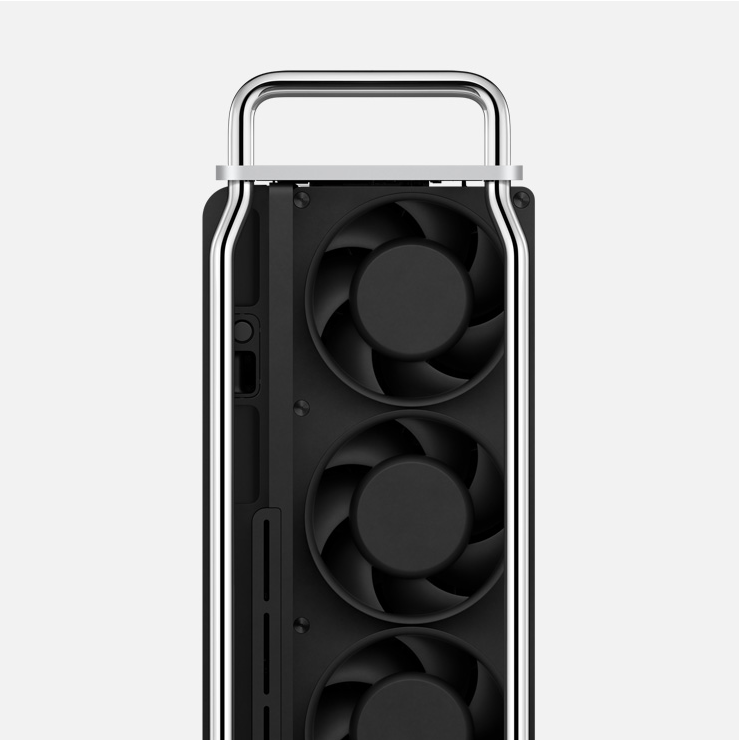

Keep cards cool. An unbelievably quiet thermal system keeps PCI cards and other internal components cool under even the most intensive workloads.
High-Speed Connections
Stacked with high-performance I/O. With an even wider array of advanced connectivity, Mac Pro now has eight Thunderbolt ports. The two HDMI ports support high-bandwidth 48Gb/s HDMI, enabling resolutions up to 8K and refresh rates up to 240Hz. And wireless connectivity enhancements support Wi-Fi 6E and Bluetooth 5.3.

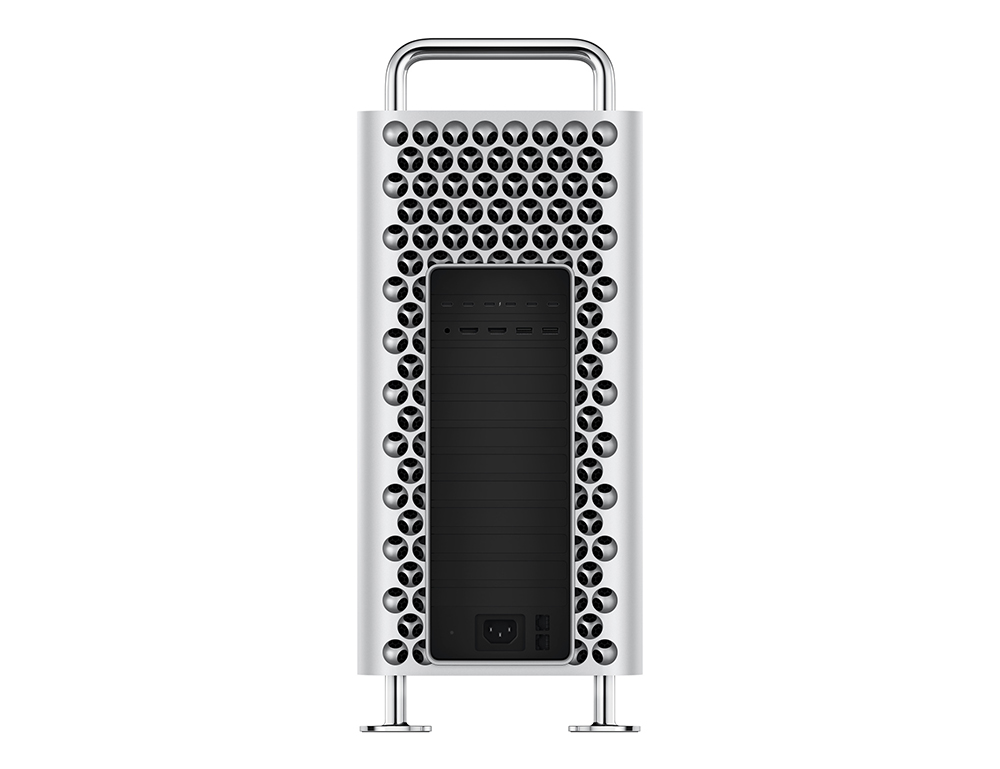

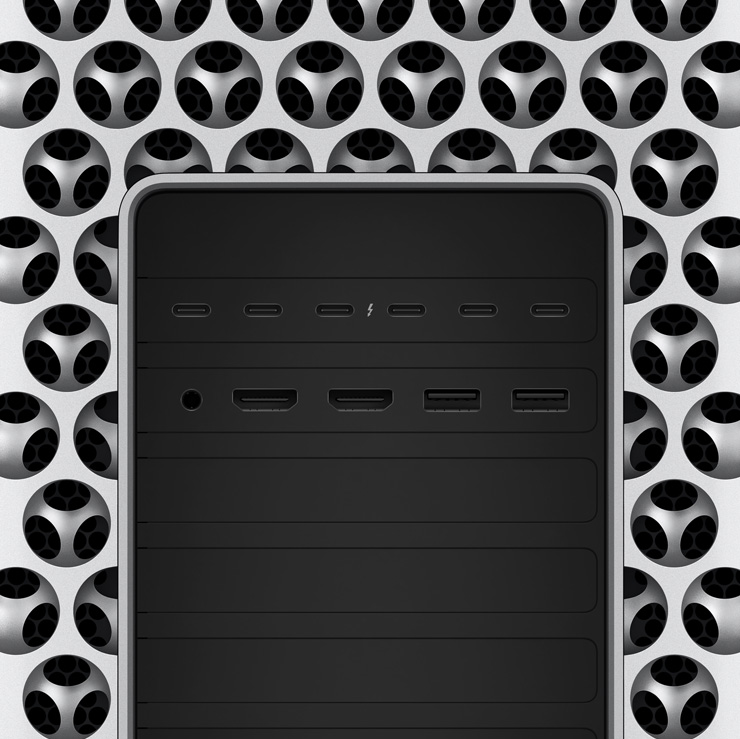

Back
- 6x Thunderbolt 4
- 2x 10Gb Ethernet
- 1x 3.5 mm headphone jack
- 2x USB-A
- 2x HDMI

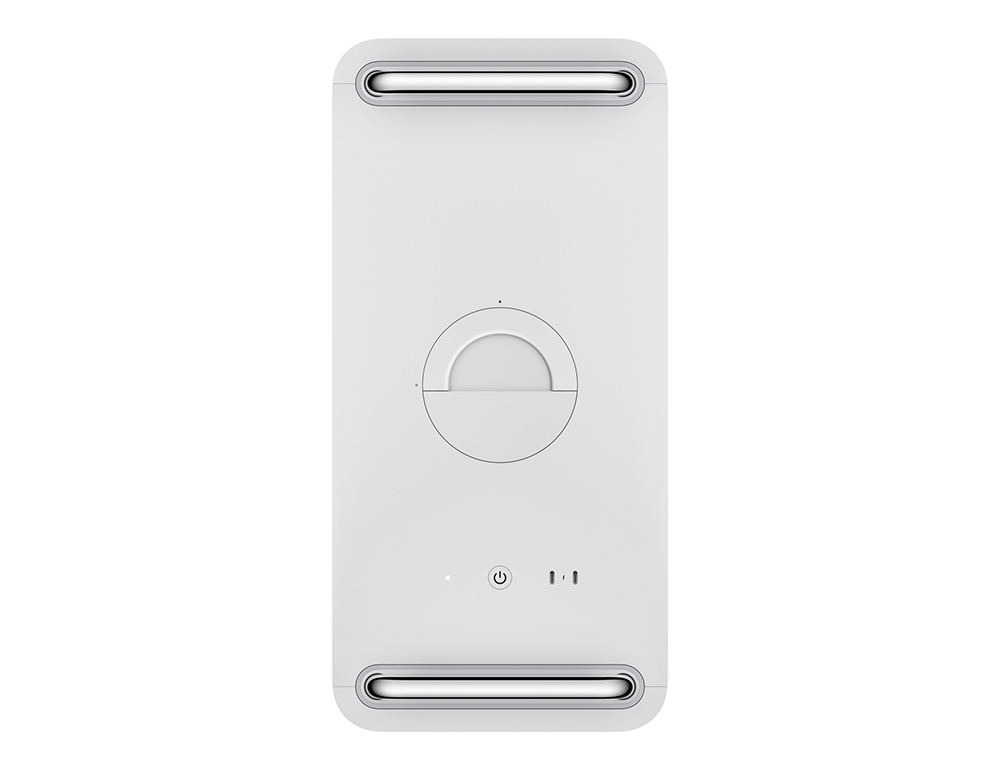

Top
Design

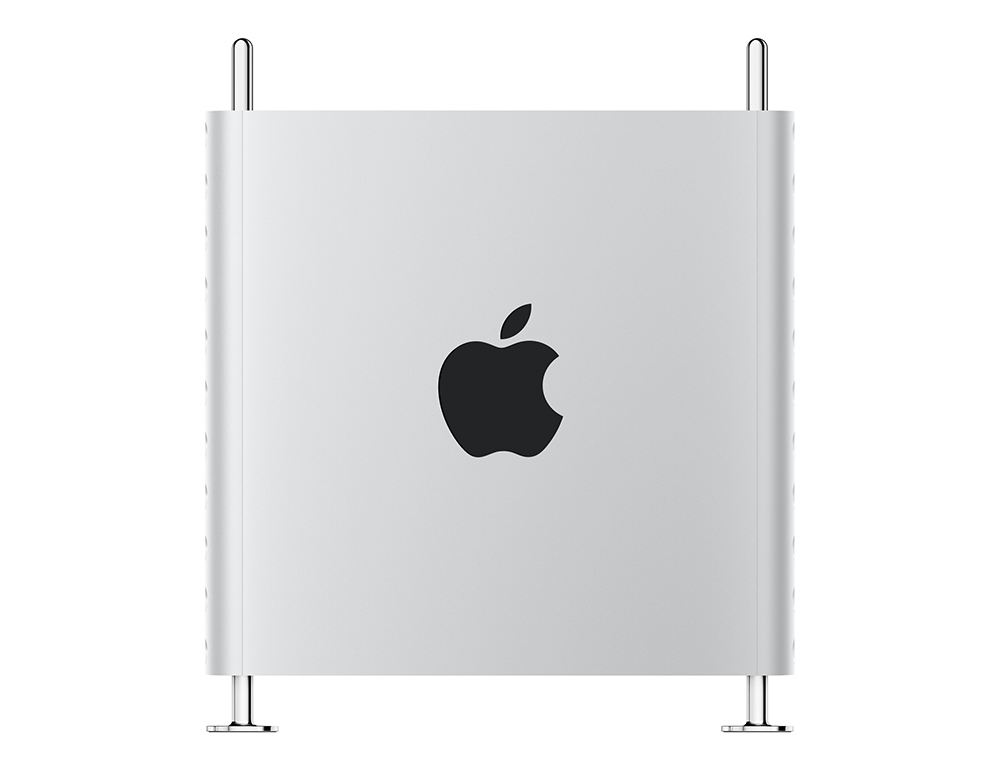

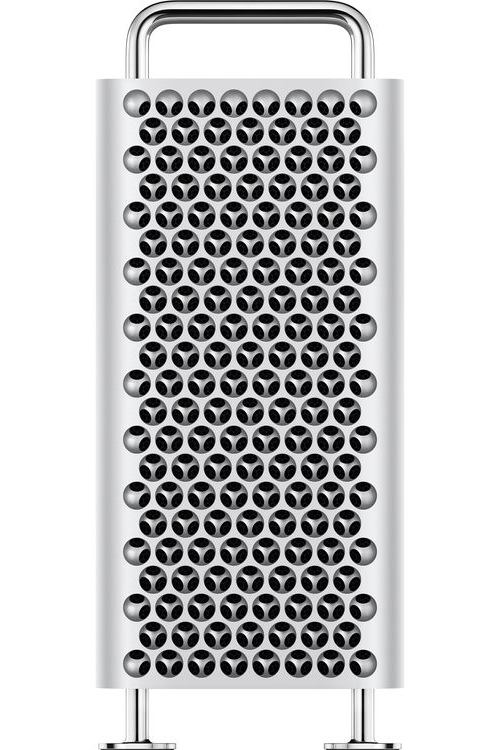

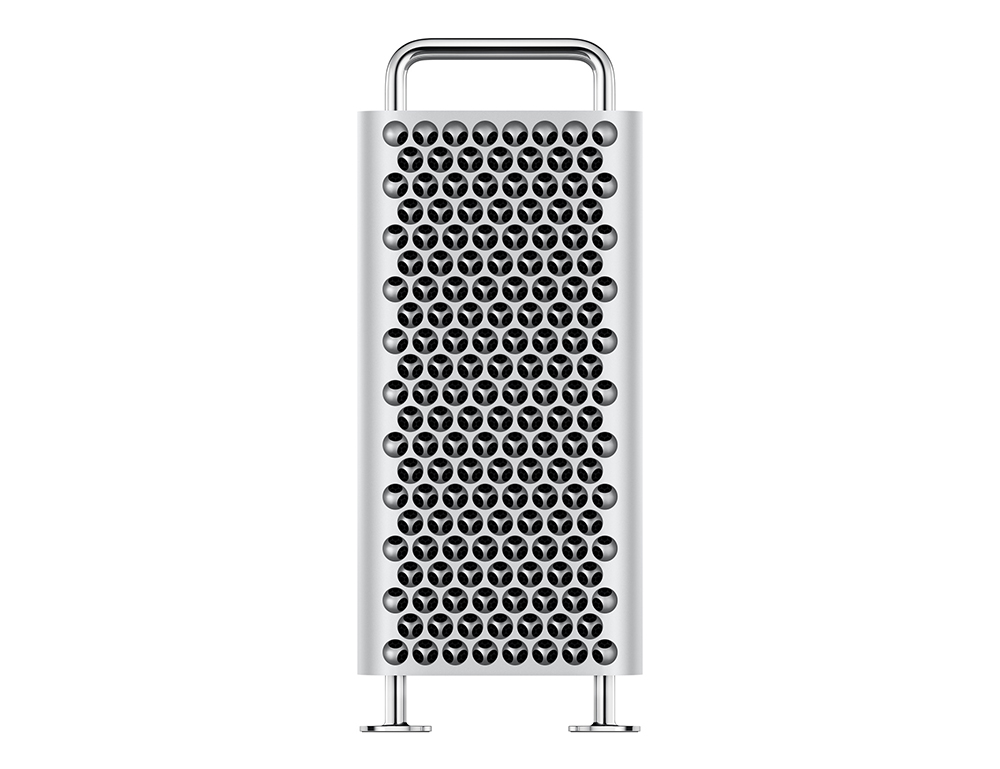

New brains. Ingenious design. Transformed by M2 Ultra, Mac Pro maintains its striking stainless steel space frame, removable aluminum housing, and advanced thermal system. It’s exceptionally solid and stable when rolled, racked, or reconfigured. And thanks to the power efficiency of Apple silicon, the new Mac Pro runs even cooler and quieter under heavy workloads — truly a workstation you can work next to.
The world’s most powerful graphics card. Times two. The four GPUs combine to add up to 56 teraflops and 128GB of high-bandwidth memory. It’s a massive amount of performance built to tackle everything from GPU rendering to machine learning to particle simulations.

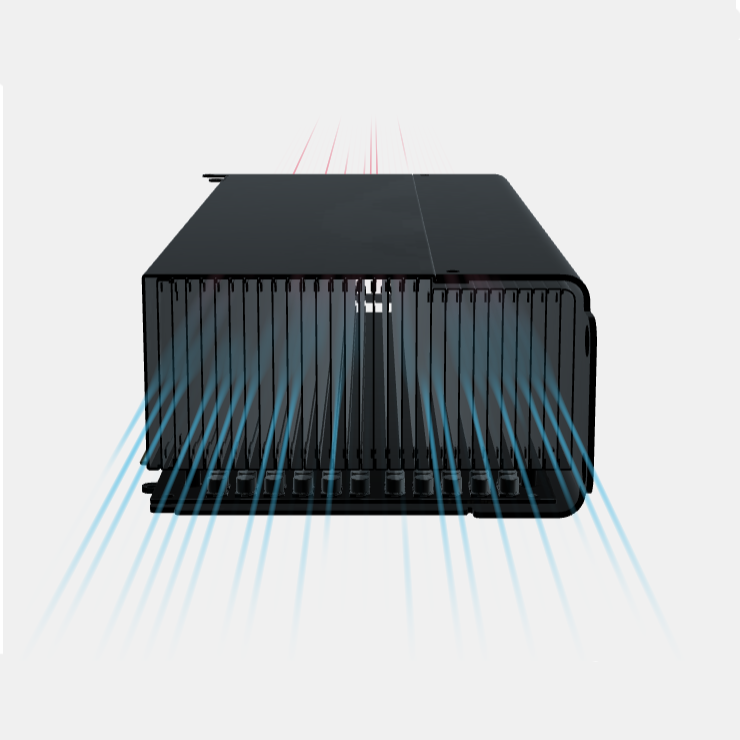

Cool. Quiet. Capable. Most GPUs aren’t conceived as part of an overall system, so they require their own cooling. The MPX Module is designed as an integrated component of Mac Pro. Its form factor enables a larger heat sink, which works in concert with the machine’s internal airflow to quietly dissipate heat. Without a noisy bolted-on fan, heat and decibel levels are kept remarkably low.

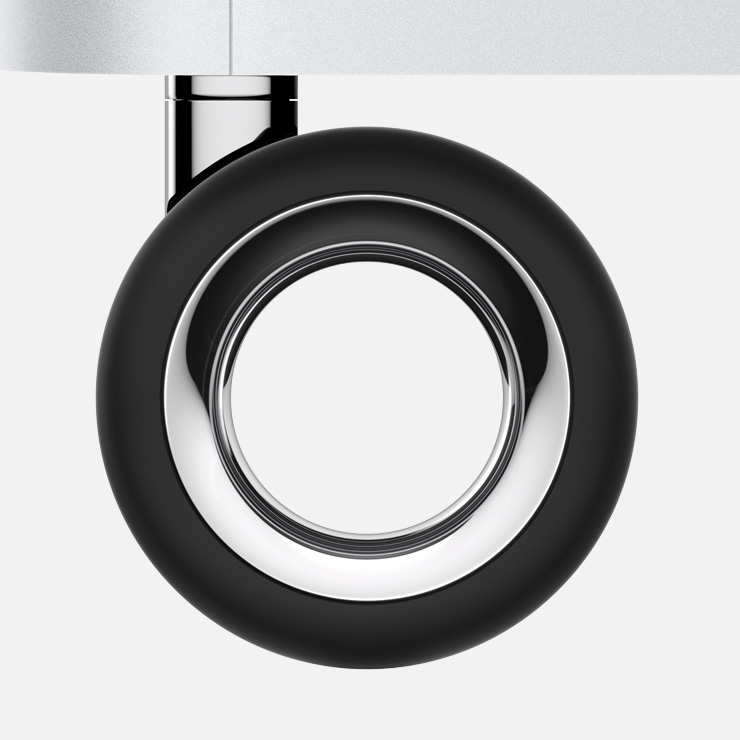

Optional wheels. Optional wheels make Mac Pro easy to transport across the set or from one studio to another.

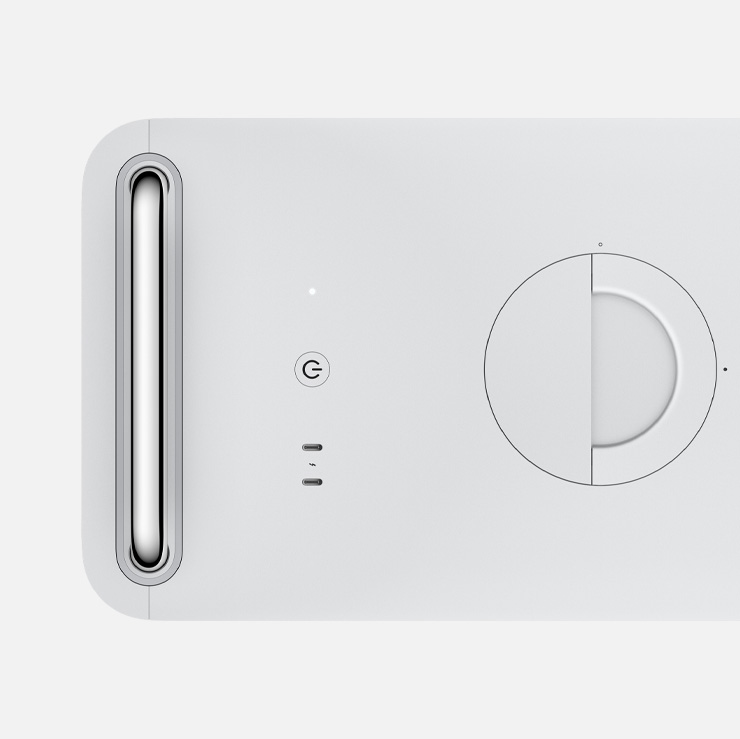

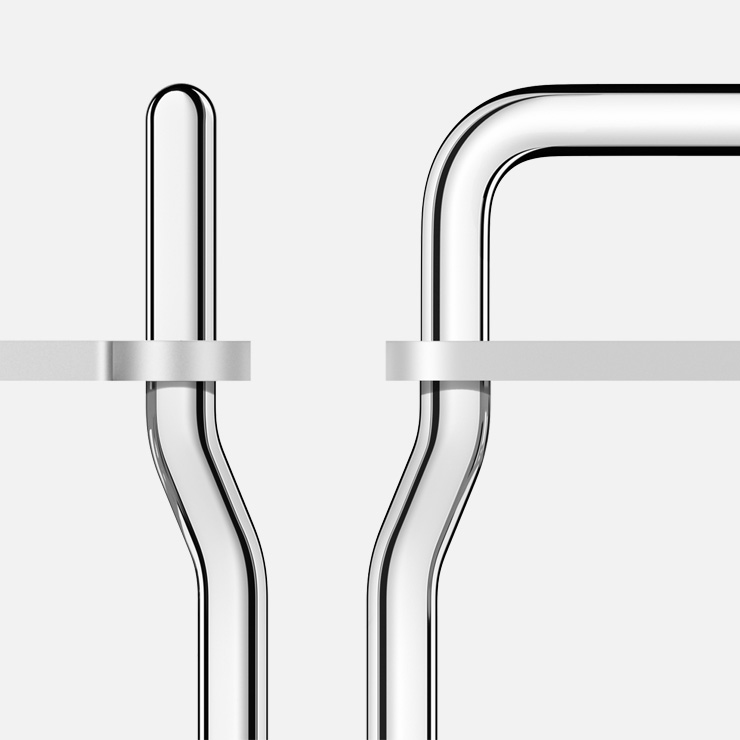

Stainless steel handles. Sturdy and comfortable to grip, the rounded handles are part of the space frame itself, making Mac Pro solid and stable when it’s lifted or moved.

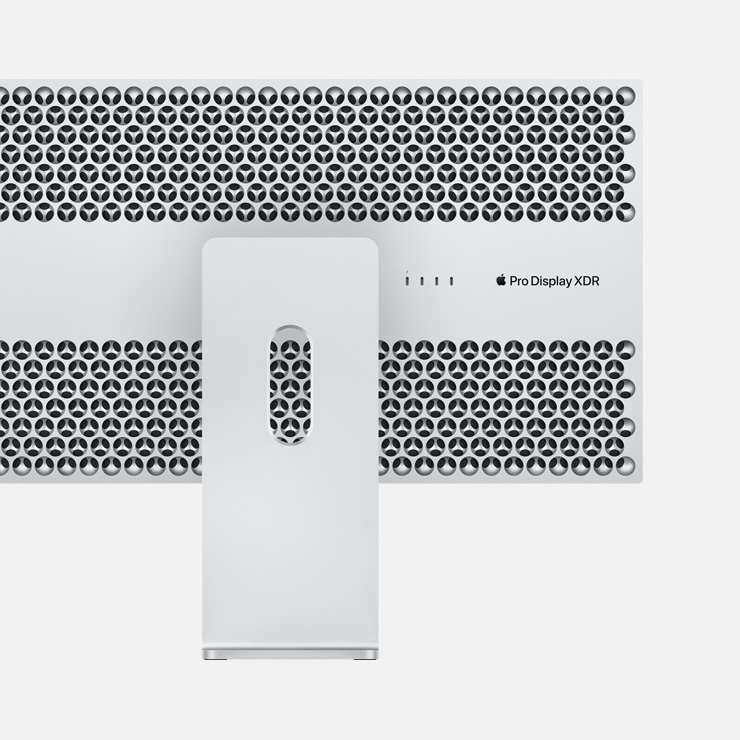

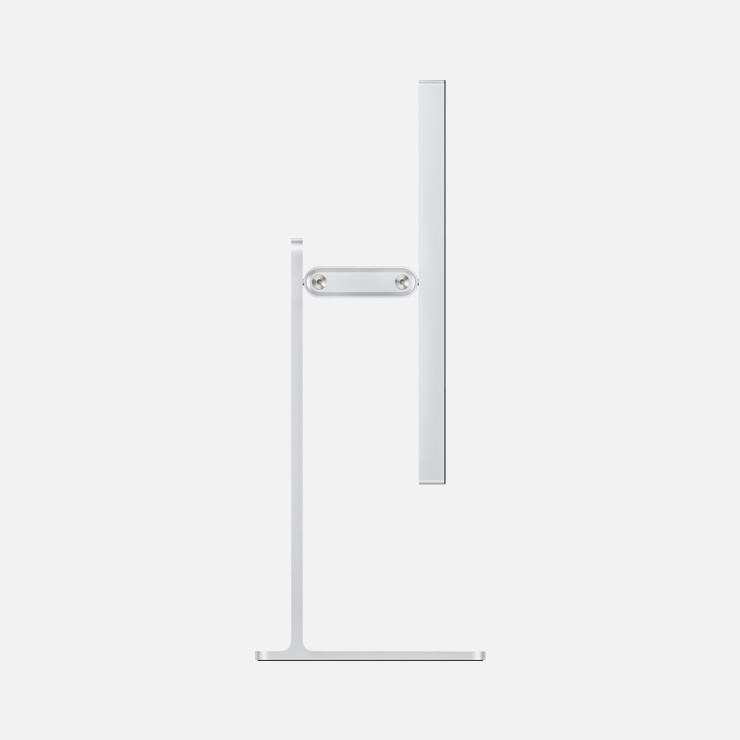

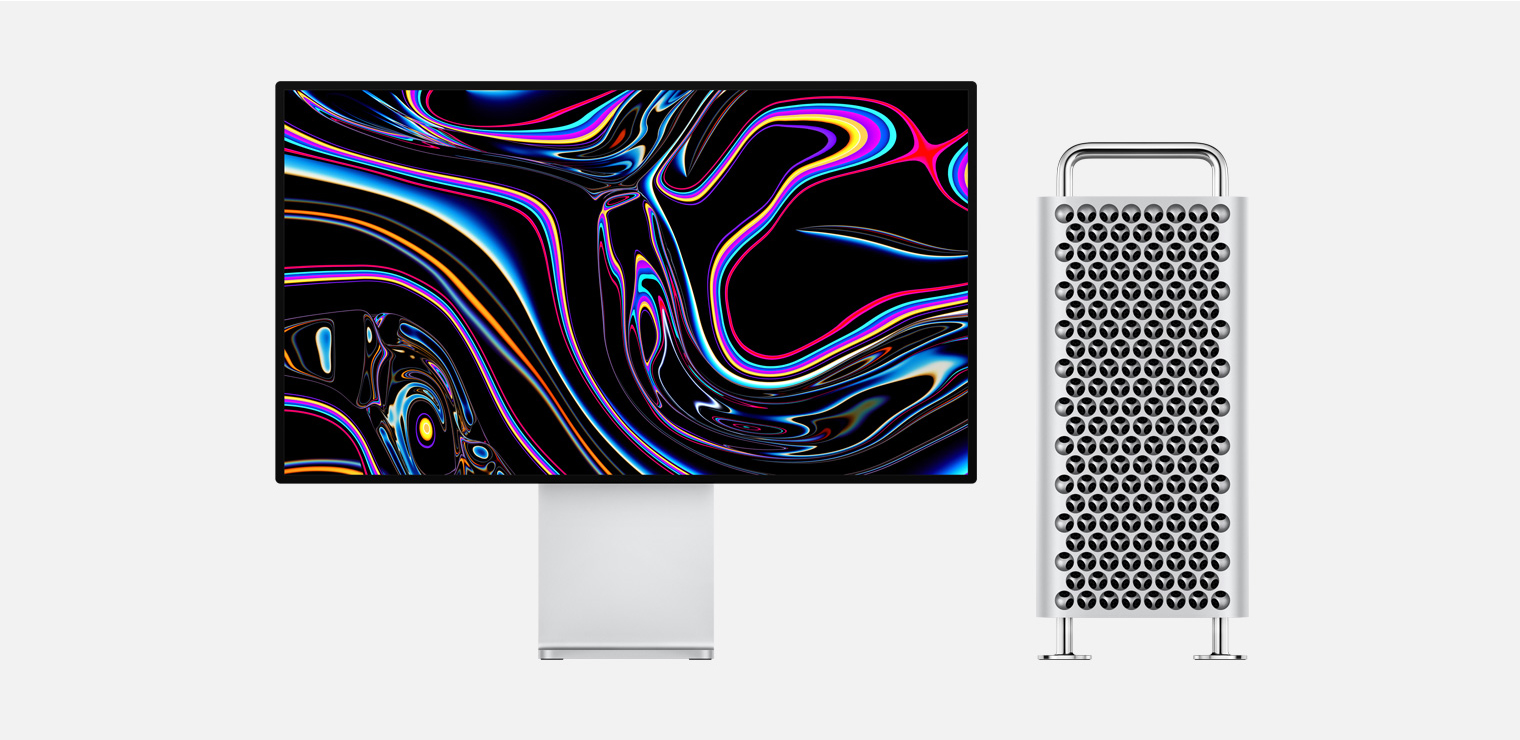

Pro Display XDR
Power on full display. Designed together, Mac Pro and Pro Display XDR pair perfectly for the ultimate workstation. With its 32-inch 6K Retina display, 1,000,000:1 contrast ratio, up to 1600 nits of brightness,15 and pro reference modes, Pro Display XDR is another game changer for pro workflows.

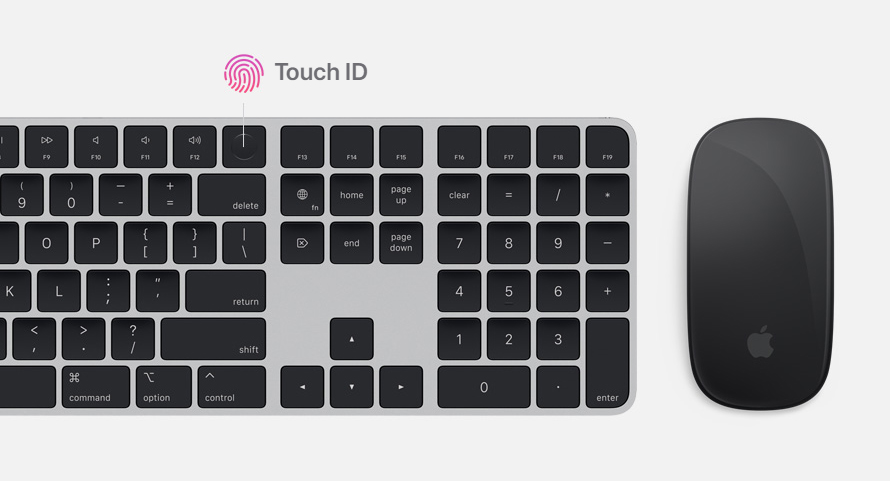

Touch ID included.
Mac Pro includes the latest Magic accessories and now supports Touch ID for fast, easy, and secure authentication for logins and purchases.
Technical Specifications
Processor
- Apple M2 Ultra chip
- 24-core CPU with 16 performance cores and 8 efficiency cores
- 60-core GPU32-core Neural Engine
- 800GB/s memory bandwidth
- Media engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Two video decode engines
- Four video encode engines
- Four ProRes encode and decode engines
- Configurable to:
- Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine
Memory
- 64GB unified memory
- Configurable to:
128GB or 192GB
Storage1
- 1TB SSD
- Configurable to:
2TB, 4TB, or 8TB
Display Support
- Simultaneous support for up to eight displays:
- Eight displays with up to 4K resolution at 60Hz
- Six displays with up to 6K resolution at 60Hz
- Three displays with up to 8K resolution at 60Hz
- Thunderbolt 4 digital video output
- Support for native DisplayPort output over USB-C
- HDMI display video output (per port)
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Support for variable refresh rate (VRR), HDR, and multichannel audio
Audio
- Built-in speaker
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Expansion
- Six full-length PCI Express gen 4 slots
- Two x16 slots
- Four x8 slots
- One half-length x4 PCI Express gen 3 slot with Apple I/O card installed
- 300W auxiliary power available:
- Two 6-pin connectors delivering 75W of power each
- One 8-pin connector delivering 150W of power
Connections
- Eight Thunderbolt 4 (USB-C) ports
- Six ports on the back of the enclosure and two ports on the top of the tower enclosure or two ports on the front of the rack enclosure
- Support for:
- Thunderbolt 4 (up to 40Gb/s)
- DisplayPort
USB 4 (up to 40Gb/s)
- USB 3.1 Gen 2 (up to 10Gb/s)
- Internal connections
- One USB-A port (up to 5Gb/s)
- Two Serial ATA ports (up to 6Gb/s)
- Additional connections
- Two USB-A ports (up to 5Gb/s)
- Two HDMI ports
- Two 10Gb Ethernet ports
- 3.5 mm headphone jack
Communications
- Wi-Fi 6E (802.11ax)2
- Bluetooth 5.3
- Two 10Gb Ethernet ports (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Input Devices
- Magic Keyboard with Touch ID and Numeric Keypad
- Magic Mouse
- Optional Magic Trackpad
Enclosure
- Mac Pro tower enclosure with feet; configurable to tower with wheels
Size and Weight
- Height: 20.8 inches (52.9 cm)
- Height with optional wheels: 21.9 inches (55.7 cm)
- Width: 8.58 inches (21.8 cm)
- Depth: 17.7 inches (45.0 cm)
- Weight: 37.2 pounds (16.86 kg)3
Electrical and Operating Requirements
- Line voltage: 100–125V AC at 12A; 220–240V AC at 6A
- Frequency: 50Hz to 60Hz, single phase
- Maximum continuous power: 1280W at 108–125V or 220–240V; 1180W at 100–107V
- Operating temperature: 50° to 95° F (10° to 35° C)
- Storage temperature: -40° to 116° F (-40° to 47° C)
- Relative humidity: 5% to 95% noncondensing
- Operating altitude: tested up to 16,400 feet (5000 meters)
- Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle4
Operating System
macOS
macOS is the most advanced desktop operating system in the world. macOS Ventura makes the things you do most on Mac even better, so you can work smarter, play harder, and go further.
Accessibility
Accessibility features help people with disabilities get the most out of their new Mac Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
- Voice Control
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Siri and Dictation
- Switch Control
- Live Captions
Built-in Apps5
- App Store
- Books
- Calendar
- Contacts
- FaceTime
- Find My
- Freeform
- GarageBand
- Home
- iMovie
- Keynote
- Mail
- Maps
- Messages
- Music
- News
- Notes
- Numbers
- Pages
- Photo Booth
- Photos
- Podcasts
- Preview
- QuickTime Player
- Reminders
- Safari
- Shortcuts
- Siri
- Stocks
- Time Machine
- TV
- Voice Memos

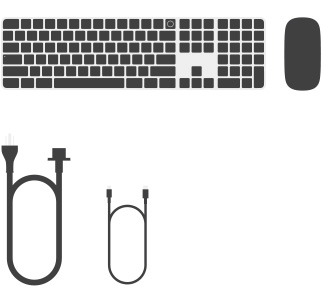

In the Box
- Magic Keyboard with Touch ID and Numeric Keypad
- Magic Mouse
- Power cord (2 m)
- USB-C to Lightning Cable (1 m)
Mac Pro and the Environment
Mac Pro is designed with the following features to reduce its environmental impact:6:
- Made with better materials
- 30% recycled content in the entire product,7 including:
- 70% recycled aluminum in the enclosure
- 100% recycled rare earth elements in the speaker magnets
- 100% recycled gold in the plating of multiple printed circuit boards
- 100% recycled tin in the solder of multiple printed circuit boards
- 35% or more recycled plastic in multiple components
- Energy efficient
- Smarter chemistry9
- Mercury-, BFR-, PVC-, and beryllium-free
- Green manufacturing
- Over 20% of manufacturing electricity sourced from supplier clean energy projects10
- No established final assembly supplier sites generate any waste sent to landfill11
- Responsible packaging
- 100% of virgin wood fiber comes from responsibly managed forests12
- 95% fiber-based packaging13
- Progress toward our 2030 goal
- Reduced emissions for Mac Pro by 34% against our baseline14
1 1 TB = 1 trillion bytes; actual formatted capacity less.
2 Wi-Fi 6E connectivity available in countries where supported.
3 Weight varies by configuration and manufacturing process.
4 Acoustics measured from typical operator position sitting in front of standard Mac Pro system. Acoustics may vary by configuration.
5 iMovie, GarageBand, Pages, Numbers, and Keynote are available on the Mac App Store. Downloading apps requires an Apple ID and a device that is compatible with the OS version required for each app.
6 Data accurate as of product launch.
7Product recycled or renewable content is the mass of certified recycled material relative to the overall mass of the device, not including packaging or in-box accessories.
8ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.
9Apple's Regulated Substances Specification describes Apple's restrictions on the use of certain chemical substances in materials in Apple products, accessories, manufacturing processes, and packaging used for shipping products to Apple’s end-customers. Restrictions are derived from international laws or directives, regulatory agencies, eco-label requirements, environmental standards, and Apple policies. Every Apple product is free of PVC and phthalates except for AC power cords in India, Thailand (for 2-prong AC power cords), and South Korea, where we continue to seek government approval for our PVC and phthalates replacement. Apple products comply with the European Union Directive 2011/65/EU and its amendments, including exemptions for the use of lead such as high-temperature solder. Apple is working to phase out the use of these exempted substances for new products where technically possible.
10We estimate the percentage of electricity-related emissions in our manufacturing that is sourced from clean electricity by attributing to our carbon model clean energy procured by our suppliers in the prior fiscal year, based on the supplier manufacturing allocations at time of product launch. Included in this number is only clean electricity that Apple or its suppliers have procured as part of Apple’s Supplier Clean Energy Program.
11All established final assembly supplier sites—those that have been Apple suppliers for more than one year—for Mac Pro are third-party verified as Zero Waste by UL LLC (UL 2799 Standard). UL requires at least 90 percent diversion through methods other than waste to energy to achieve Zero Waste to Landfill (Silver 90–94 percent, Gold 95–99 percent, and Platinum 100 percent) designations.
12Responsible sourcing of wood fiber is defined in Apple’s Sustainable Fiber Specification. We consider wood fibers to include bamboo.
13Breakdown of U.S. retail packaging by weight. Adhesives, inks, and coatings are excluded from our calculations of plastic content and packaging weight.
14Carbon reductions are calculated against a baseline scenario: 1) No use of clean electricity for manufacturing or product use, beyond what is already available on the grid (based on regional emissions factors). 2) Apple’s carbon intensity of key materials as of 2015 (our baseline year for our 2030 product carbon neutrality goal). Carbon intensity of materials reflects use of recycled content and production technology. 3) Apple’s average mix of transportation modes (air, rail, ocean, ground) by product line across three years (fiscal years 2017 to 2019) to best capture the baseline transportation emissions of our products.
